PRINTED CIRCUIT BOARDS (PCB)
PRODUCTS & TECHNOLOGIES
PRODUCT MIX
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/ML.jpg)
Multilayer
up to 42 layers
Impedance control possible
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/ims.jpg)
IMS
with aluminium or copper core
various types in stock
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/DK.jpg)
Double- and single sided
with or without through-hole plating
super-fast production time from 8 hours
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/Interposer.jpg)
Ultra-Fine Conductor
50µm Line & 30µm Space
CU/Hole Offset < 10µm
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/HFboard.jpg)
HF-Boards
High-frequency materials (Rogers, Taconic, ..)
various ceramics and teflon substrates in stock
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/semiflex-1.jpg)
Semiflex
for single bending
Flex part is created by CNC technology
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/Loadboard.jpg)
Probecards
up to 6mm thick
up to 42 layers
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/HDI.jpg)
HDI
stacked Vias, Anylayer
Blind-Burried Stackups

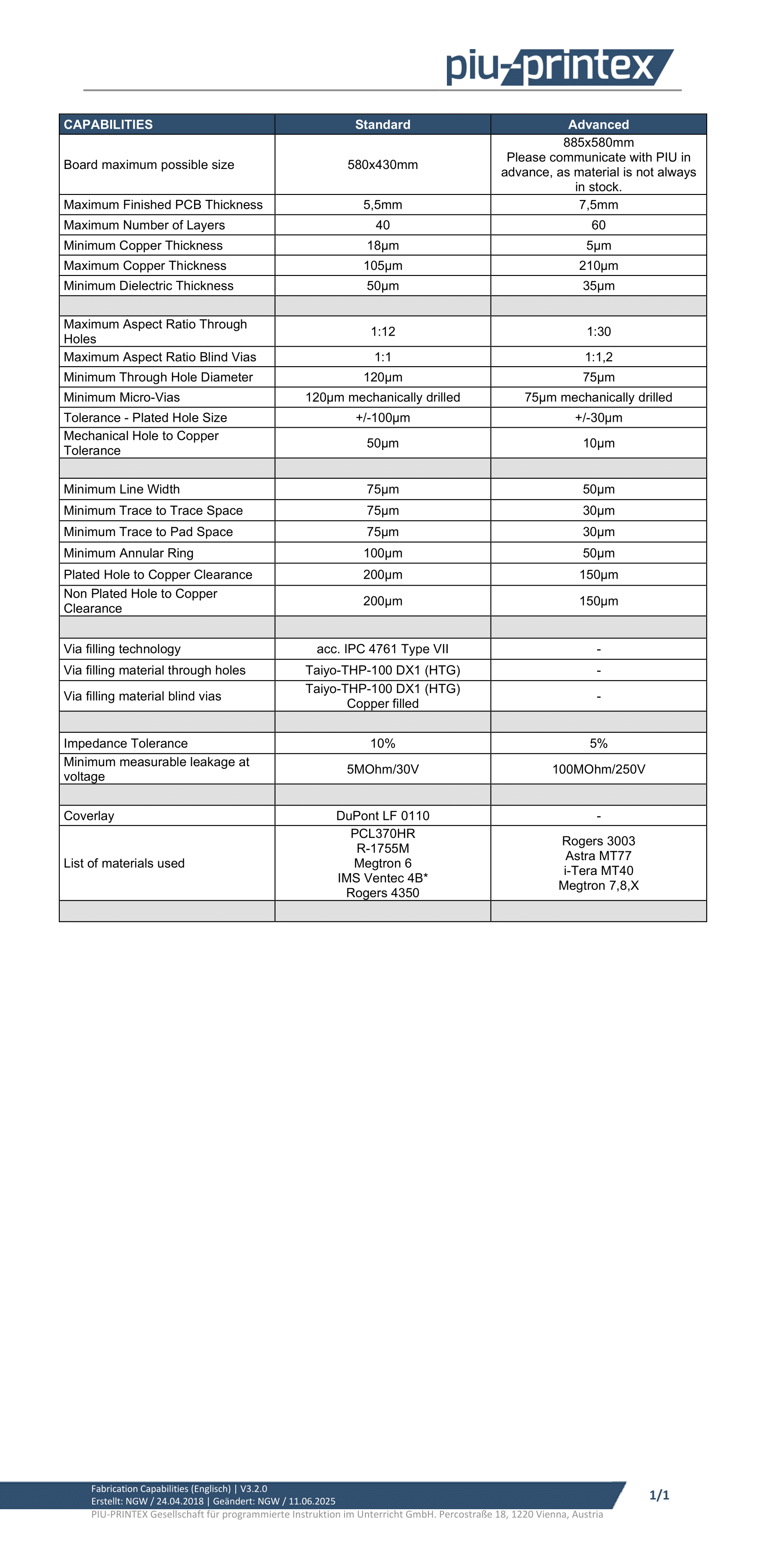

TECHNOLOGy-ROADMAP
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/ProductionRoadmap.jpg)
OPTIONS
SURFACES
- HAL Pb-Free
- chem. Sn.
- galv. NiAu
- ENTEK
- ENIG
- ENEPIG
- ENEPIG (thick layer PD)
- ENEP
- Selektiv galv. Au
- EP
SOLDERMASK/SILKSCREEN
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/green.png)
Green
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/white.jpg)
White
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/red.png)
Red
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/blue.png)
Blue
![](https://piumail.piu-printex.at/wordpress/wp-content/uploads/black.png)
Black
Materials
We have a variety of materials for various applications in stock. We are also happy to procure the material of your choice or process the material provided – please contact our technical support for further information.
FR4-Standard
(TG < 150)
(TG < 150)
- MC100 (Panasonic)
- R1755C (Panasonic)
High-TG
(TG 180)
(TG 180)
- PCL370HR (ISOLA)
Super HIGH-TG
(TG > 200)
(TG > 200)
- FR408 (ISOLA)
- P96 (ISOLA)
- VT901 (VENTEC)
HIGH FREQUENCY
(Keramik, Teflon, ..)
(Keramik, Teflon, ..)
- MEGTRON 6 (PANASONIC)
- MEGTRON 4 (PANASONIC)
- TLE95 (TACONIC)
- Rogers4350B (ROGERS)
cycle resistant
(Automotive)
(Automotive)
- R1566W (Panasonic)
IMS
(ALU/CU)
(ALU/CU)
- VT-4B3 (VENTEC)
- VT-4B5 (VENTEC)
- VT-4B7 (VENTEC)
- VT-4A1 (VENTEC)
- VT-4A2 (VENTEC)
- HPL (Bergquist)
- HT (Bergquist)
special technologies
- Edge Plating
- Slot holes (plated/non-plated)
- Depth milling
- Backdrilling
- Viafill
- Plugging
-
CCD-Measurement incl.
measurement protocol - Impedance measurement
